SpringMVC

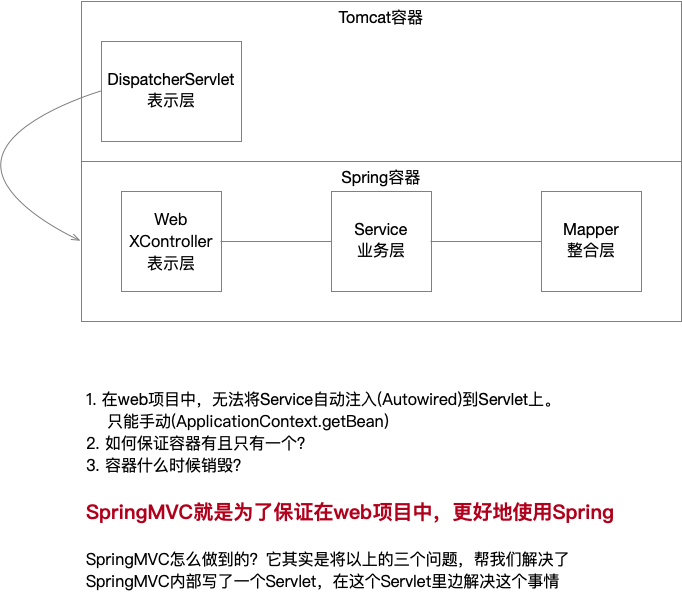

SpringMVC概述

为了更好地在web工程中，使用Spring框架

SpringMVC 入门

快速入门

导入依赖

pom.xml

xml

<dependency>
  <groupId>jakarta.servlet</groupId>
  <artifactId>jakarta.servlet-api</artifactId>
  <version>6.0.0</version>
  <scope>provided</scope>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>5.3.7</version>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-web</artifactId>
    <version>5.3.7</version>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.3.7</version>
</dependency>

配置Spring容器

application-context.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:c="http://www.springframework.org/schema/c"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd">

    <context:component-scan base-package="com.futureweaver"/>

</beans>

配置前置控制器

web.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:applicaiton-context.xml</param-value>
        </init-param>
        <load-on-startup>2</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

</web-app>

编写Controller

UserController

java

@Controller
@RequestMapping("/user")
public class UserController {

    @RequestMapping("/login")
    public String login() {
        // 需要在WEB-INF的pages目录中，添加一个index.jsp
        System.out.println("用户访问了登录");
        return "/index.jsp";
    }
}

配置视图解析器

springmvc.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:c="http://www.springframework.org/schema/c"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd">

    <context:component-scan base-package="com.futureweaver"/>

    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"/>

</beans>

SpringMVC执行流程分析【重点】

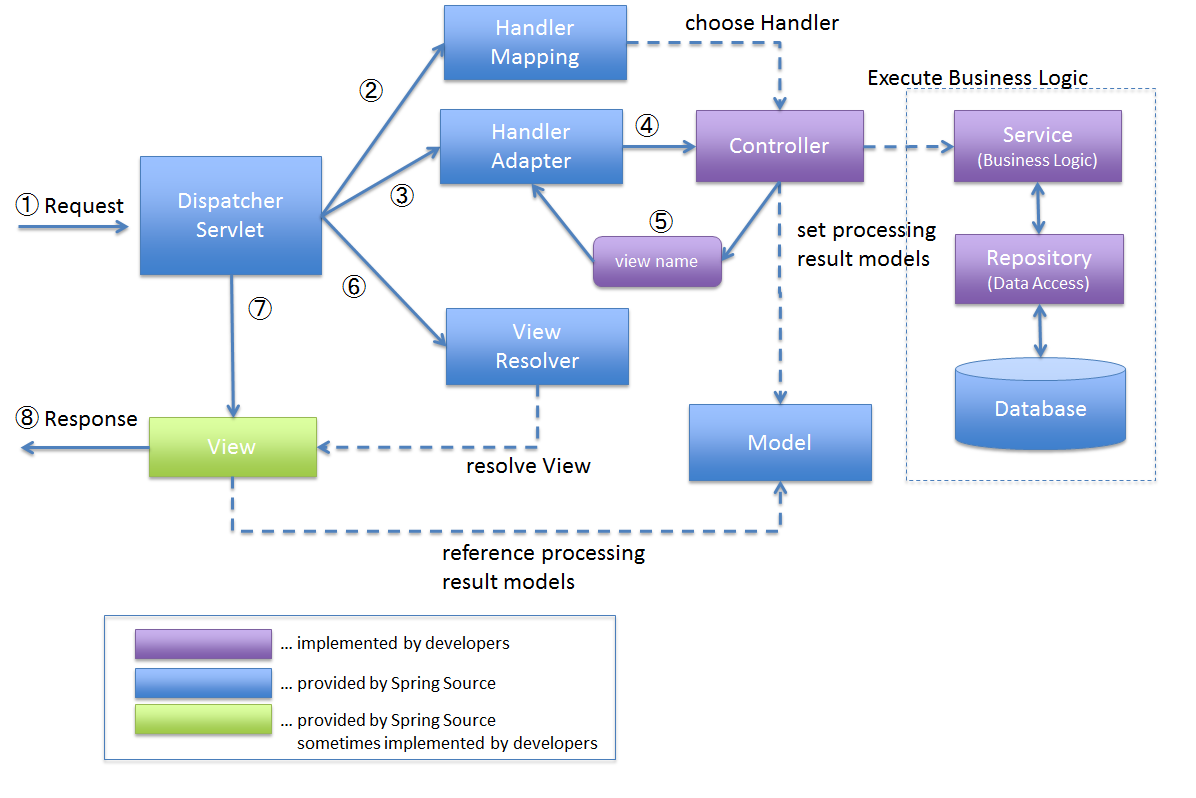

RequestLifecycle

HandlerMapping
映射处理器，找到Controller
HandlerAdapter
适配处理器，调用Controller、传参
ViewResolver
视图解析器，处理Controller的返回值。加前缀、加后缀

RequestMapping注解参数

value

给HandlerMapping来用的映射地址

path

给HandlerMapping来用的映射地址

method

请求方式，RequestMethod.GET、RequestMethod.POST...

params

能够指请求参数，在Java代码就可以直接接到这些参数了，不再需要request.getParameter...
可以不写

参数绑定

基本类型与String类型

java

@Controller
@RequestMapping("/user")
public class UserController {

    @RequestMapping(value = "/login")
    public String login(String username, String password) {
        System.out.println("用户访问了登录");
        return "index";
    }

    @RequestMapping(value = "/delete")
    public String delete(int id) {
        return "index";
    }
}

POJO类型

POJO

Plain Ordinary Java Object

User.java

java

public class User {
    private String id;
    private String username;
    private String password;
    private String gender;
    private String mobile;
    private String email;

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getGender() {
        return gender;
    }

    public void setGender(String gender) {
        this.gender = gender;
    }

    public String getMobile() {
        return mobile;
    }

    public void setMobile(String mobile) {
        this.mobile = mobile;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }
}

UserController.java

java

@Controller
@RequestMapping("/user")
public class UserController {

    @RequestMapping(
            value = "/login",
            method = {RequestMethod.POST, RequestMethod.GET},
            params = {"username", "password"})
    public String login(String username, String password) {
        System.out.println("用户访问了登录");
        return "index";
    }

    @RequestMapping(value = "/delete")
    public String delete(int id) {
        return "index";
    }

    @RequestMapping("/register")
    public String register(User user) {
        return "index";
    }
}

内置转换器

参考 spring-core 依赖

org.springframework.core.convert.support包内的，都是 Spring 内置的转换器。一部分的转换器描述了原始类型和目标类型，通过范型描述

自定义类型转换器

实现接口

java

public class StringToDateConverter implements Converter<String, Date> {
    // 将String类型转换成Date类型
    @Override
    public Date convert(String s) {
        // format: 将Date转换成String
        // parse: 将String转换成Date
        Date result = null;
        try {
            SimpleDateFormat format = new SimpleDateFormat("yyyy-MM-dd");
            result = format.parse(s);
        } catch (ParseException e) {
            e.printStackTrace();
        } finally {
            return result;
        }
    }
}

配置转换器

需要将自己编写的转换器，放到Spring容器当中

java

<bean id="converterService"
      class="org.springframework.context.support.ConversionServiceFactoryBean">
    <property name="converters">
        <array>
            <bean class="com.futureweaver.web.converter.StringToDateConverter"></bean>
        </array>
    </property>
</bean>

引用自定义转换器

java

<mvc:annotation-driven conversion-service="converterService"/>

编码过滤器【掌握】

xml

<filter>
    <filter-name>CharacterEncodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
        <param-name>encoding</param-name>
        <param-value>UTF-8</param-value>
    </init-param>
  <init-param>
        <param-name>forceEncoding</param-name>
        <param-value>true</param-value>
    </init-param>
</filter>

<filter-mapping>
    <filter-name>CharacterEncodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

常用注解【重点】

RequestParam

描述参数名、默认值、是否必填等等...

java

@RequestMapping("/query")
public String query(
  @RequestParam(defaultValue = "1") int currentPage,
  @RequestParam(defaultValue = "10") int pageSize) {
    return "/index.jsp";
}

PathVariable

java

// 当前端访问时，uri为: /user/delete/10时，如何把id=10接收到
@RequestMapping("/delete/{id}")
public void delete(
  @PathVariable("id") String id) {
}

RequestHeader

java

@RequestMapping("/request_header")
public String requestHeader(
        /*HttpServletRequest request*/
        @RequestHeader("User-Agent") String userAgent) {
    return "/index.jsp";
}

CookieValue

@CookieValue使用方法同@RequestParam
注意@CookieValue("JSESSIONID")必须大写

java

@RequestMapping("/cookie_value")
public String cookieValue(
        /*HttpServletRequest request*/
        @CookieValue("JSESSIONID") String jsessionid) {
    return "/index.jsp";
}

SessionAttribute

java

@RequestMapping("/session_attribute")
public String sessionAttribute(
        /*HttpServletRequest request*/
        /*HttpSession session*/
        @SessionAttribute(name = "username", required = false) String username) {
    return "/index.jsp";
}

Model

Model参数

java

@RequestMapping("/model_sample")
public String modelSample(Model model) {
    model.addAttribute("gender", "male");

    // 默认情况下是转发
    return "/index.jsp";
}

ModelMap参数

java

@RequestMapping("/model_map_sample")
public String modelMapSample(ModelMap model) {
    model.put("gender", "male");
    return "/index.jsp";
}

ModelAttribute注解

java

@Controller
public class ModelAttributeController {
    // 在编写RequestMapping函数时
    // 真正地产生这个函数的调用之前，就应该向Model模型当中，注入一部分内容

    @ModelAttribute
    public void m1(Model model) {
        model.addAttribute("name1", "value1");
    }

    @ModelAttribute("name2")
    public String m2() {
        return "value2";
    }

    @RequestMapping("/model_attribute1")
    public String modelAttribute1(Model model) {
        System.out.println(model.getAttribute("name1"));
        System.out.println(model.getAttribute("name2"));

        return "/index.jsp";
    }

    @RequestMapping("/model_attribute2")
    public String modelAttribute2(@ModelAttribute("name1") String a,
                                  @ModelAttribute("name2") String b) {
        System.out.println(a);
        System.out.println(b);
        return "/index.jsp";
    }
}

SessionAttributes注解

java

@Controller
@SessionAttributes("mobile")
// 所有在本类中，对model做键为mobile的操作，都在session中进行
public class SessionController {
    @RequestMapping("/session_attr_send")
    public String sessionSend(Model model) {
        // 期望把model放到会话域当中
        model.addAttribute("mobile", "134-1234-5678");
        return "/index.jsp";
    }

    @RequestMapping("/session_attr_receive")
    public String sessionReceive(
            @SessionAttribute(name = "mobile", required = false) String mobile) {
        return "/index.jsp";
    }
}

页面跳转

java

@RequestMapping("/forward1")
public String forward1() {
    return "/index.jsp";
}

@RequestMapping("/forward2")
public String forward2() {
    return "forward:/index.jsp";
}

重定向

java

@RequestMapping("/redirect")
public String redirect() {
    return "redirect:/index.jsp";
}

SpringMVC深入

响应数据和结果视图

返回值分类【了解】

字符串

给视图解析器识别的视图名字(jsp、html...)

void

java

// 操作响应体
@RequestMapping("/void1")
public void voidMethod1(HttpServletResponse response) throws IOException {
    response.getWriter().write("<h1>Hello</h1>");
}

// 如果不响应页面，就需要响应状态。
@RequestMapping("/void2")
@ResponseStatus(HttpStatus.OK)
public void voidMethod2() {
}

ModelAndView

java

@RequestMapping("/modeAndView")
public ModelAndView modelAndView() {
    ModelAndView modelAndView = new ModelAndView();

    // 当做model使用
    modelAndView.getModel().put("email", "future-weaver@future-weaver.com");

    // 当做视图使用
    // 可以进行渲染
    modelAndView.getView();

    // 设置视图名
    modelAndView.setViewName("forward:/index.jsp");

    // 增加数据
    modelAndView.addObject("age",18);

    return modelAndView;
}

响应ResponseBody

字符串类型

java

@RequestMapping("/res_body_str")
@ResponseBody
// 用户在浏览器看到的响应体就是返回的字符串，不再让视图解析器找视图
public String resBodyStr() {
    return "abcdefg";
}

对象类型

导入依赖

xml

<dependency>
   <groupId>com.fasterxml.jackson.core</groupId>
   <artifactId>jackson-databind</artifactId>
   <version>2.11.3</version>
</dependency>

添加配置
xml
```
<mvc:annotation-driven/>
```
1

编写 Controller

java

@RequestMapping("/res_body_obj")
@ResponseBody
public Map<String, Object> resBodyObj() {
   Map<String, Object> map = new HashMap<>();
   map.put("username", "zhangsan");
   map.put("gender", "male");

   return map;
}

请求RequestBody

java

@RequestMapping("/request_body")
// 当客户端发来的请求体是json格式时，可以利用RequestBody注解，协助转换
public String requestBody(@RequestBody User user) {
    return "/index.jsp";
}

静态资源问题

默认情况下，DispatcherServlet会截获所有的请求，并在所有的已注册的Controller中检索。
会出现404 - 未找到错误

解决方案1【重点】

xml配置方式

xml

<!--
  额外的增加一个handler，且其requestMapping:  "/**" 可以匹配所有请求，但是优先级最低
  所以如果其他所有的handler都匹配不上，请求会转向 "/**" ,恰好，这个handler就是处理静态资源的
  处理方式：将请求转会到tomcat中名为default的Servlet
  -->
<mvc:default-servlet-handler/>

注解配置方式

java

@Configuration
@EnableWebMvc
public class ResourceConfig implements WebMvcConfigurer {
    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }
}

解决方案2【了解】

xml配置方式

mapping是访问路径，location是静态资源存放的路径
将/html/ **中 /**匹配到的内容，拼接到 /hhh/后 http://..../html/a.html 访问 /hhh/a.html

xml

<mvc:resources mapping="/html/**" location="/hhh/"/>

解决方案3【了解】

web.xml配置
所有为url-pattern使用后缀名匹配

xml

<servlet>
      <servlet-name>DispatcherServlet</servlet-name>
      <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>DispatcherServlet</servlet-name>
    <url-pattern>*.action</url-pattern>
</servlet-mapping>

组合注解

RestController
GetMapping
PostMapping
DeleteMapping
PutMapping

文件上传

导入依赖

xml

<dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.4</version>
</dependency>

<dependency>
    <groupId>commons-fileupload</groupId>
    <artifactId>commons-fileupload</artifactId>
    <version>1.3.3</version>
    <exclusions>
        <exclusion>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
        </exclusion>
    </exclusions>
</dependency>

配置解析器

xml

<!-- 上传解析器
    id: 必须是"multipartResolver"
    maxUploadSize:最大可上传的文件大小，单位：byte 超出后会抛出MaxUploadSizeExceededException异常，可以异常解析器捕获
    defaultEncoding: 用来设置上传文件名称的参数，如果不设置的话，图片名称如果有中文，保存时会乱码
 -->
<bean id="multipartResolver"
      class="org.springframework.web.multipart.commons.CommonsMultipartResolver"
      p:maxUploadSize="1048576"
      p:defaultEncoding="utf-8"/>

编写Controller

java

/**
 * 文件上传
 * 需要通过MultipartFile类型来接收上传数据
 *
 * @throws Exception
 * @throws IllegalStateException
 */
@RequestMapping("/upload")
public String upload(@RequestParam("file") MultipartFile file) throws Exception {
    if (file!=null) {
        //将文件存储到指定路径
        file.transferTo(new File("d:/upload/" + file.getOriginalFilename()));
    }
    return "/index.jsp";
}

validation-api【扩展】

导入依赖

xml

<dependency>
    <groupId>org.hibernate.validator</groupId>
    <artifactId>hibernate-validator</artifactId>
    <version>6.2.0.Final</version>
</dependency>

常用注解

@Email
The string has to be a well-formed email address. Exact semantics of what makes up a valid email address are left to Jakarta Bean Validation providers. Accepts CharSequence.
@NotBlank
The annotated element must not be null and must contain at least one non-whitespace character.
@NotEmpty
The annotated element must not be null nor empty.
@NotNull
The annotated element must not be null.
@Pattern
The annotated CharSequence must match the specified regular expression.
@Valid
Marks a property, method parameter or method return type for validation cascading.

validation-api使用

只在@RequestBody，即json格式的参数时才生效

User.java

java

public class User {
    @NotEmpty
    @Pattern(regexp = "[a-zA-Z]{6,16}")
    private String username;

    @NotEmpty
    @Email
    private String email;

    // ...
}

UserController.java

java

@RestController
@RequestMapping("/user")
public class UserController {

    // 接收的数据是json时，才能使用validation-api
    @RequestMapping("/jsonregister")
    public String register(@Valid @RequestBody User user) {
        return "jsonregister";
    }
}

异常处理(前后端不分离模式)

自定义异常解析器

ExceptionHandler.java

java

@Component
public class ExceptionHandler implements HandlerExceptionResolver {
    @Override
    public ModelAndView resolveException(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) {
        ModelAndView result = new ModelAndView();

        result.getModelMap().put("ex", ex);
        result.setViewName("/500.jsp");

        return result;
    }
}

自定义异常视图

500.jsp

jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
</head>
<body>

<h1>${ex.localizedMessage}</h1>

</body>
</html>

异常处理

ResponseResult.java

java

public class ResponseResult<T> {
    int code = 200;
    String message = "successful";
    T data;

    // TODO: 生成 toString
    // TODO: 生成 getter & setter
}

ExceptionInterceptor.java

java

@ControllerAdvice
public class ExceptionInterceptor {
import java.nio.file.FileAlreadyExistsException;
import java.util.ArrayList;
import java.util.List;

import javax.servlet.http.HttpServletRequest;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.validation.FieldError;
import org.springframework.web.bind.MethodArgumentNotValidException;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * 异常拦截器
 *
 */
@ControllerAdvice
public class GlobalExceptionHandler {
    private final static Logger logger = LoggerFactory.getLogger(GlobalExceptionHandler.class);

    /**
     * 系统异常
     *
     * @param req
     * @param e
     * @return
     */
    @ExceptionHandler(value = Exception.class)
    @ResponseBody
    public ResponseResult<String> systemExceptionHandler(HttpServletRequest req, Exception ex) {
        // 处理日志
        logger.error(req.getQueryString());
        logger.error(req.getRequestURI());
        logger.error("SystemException", ex);

        // 处理响应
        ResponseResult<Exception> result = new ResponseResult<>();
        result.setCode(1500);
        result.setMessage("system exception");
        result.setData(ex);
        return result;
    }
}

增强器

java

import java.lang.reflect.Field;

import org.springframework.core.MethodParameter;
import org.springframework.http.MediaType;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.server.ServerHttpRequest;
import org.springframework.http.server.ServerHttpResponse;
import org.springframework.util.ReflectionUtils;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.servlet.mvc.method.annotation.ResponseBodyAdvice;

/**
 * 作为ResponseResult的填充器:
 * - [正确值]当RESTful方法返回void时，填充响应JSON
 * - [正确值]当RESTful方法返回的不是void时，填充TO对象的responseResult属性
 * - [错误值]若处理错误响应，则使用异常拦截器填充
 *
 */
@ControllerAdvice
public class ResponseResultAssembler implements ResponseBodyAdvice<Object> {

    @Override
    public boolean supports(MethodParameter returnType, Class<? extends HttpMessageConverter<?>> converterType) {
        if (returnType.getMethod().getReturnType().equals(void.class)) {
            return true;
        }

        Field[] fields = returnType.getMethod().getReturnType().getDeclaredFields();
        for (Field fieldItem : fields) {
            if (fieldItem.getType().equals(ResponseResult.class)) {
                return true;
            }
        }

        return false;
    }

    @Override
    public Object beforeBodyWrite(
            Object body,
            MethodParameter returnType,
            MediaType selectedContentType,
            Class<? extends HttpMessageConverter<?>> selectedConverterType,
            ServerHttpRequest request,
            ServerHttpResponse response) {

        if (returnType.getMethod().getReturnType().equals(void.class)) {
            ResponseResult<String> responseResult = new ResponseResult<>();
            return responseResult;
        }

        Field[] fields = returnType.getMethod().getReturnType().getDeclaredFields();
        for (Field fieldItem : fields) {
            if (fieldItem.getType().equals(ResponseResult.class)) {
                fieldItem.setAccessible(true);
                ResponseResult<?> responseResult = (ResponseResult<?>) ReflectionUtils.getField(fieldItem, body);
                if (responseResult == null) {
                    responseResult = new ResponseResult<>();
                    ReflectionUtils.setField(fieldItem, body, responseResult);
                }
            }
        }

        return body;
    }
}

拦截器

HandlerInterceptor
ClientHttpRequestInterceptor
RequestInterceptor

自定义拦截器

java

public class ProcessInterceptor implements HandlerInterceptor {

    /**
     * 在Handler方法执行之前执行
     * 返回值，返回true拦截器放行 false拦截器不通过，后续业务逻辑不再执行
     */
    @Override
    public boolean preHandle(HttpServletRequest request,
                             HttpServletResponse response,
                             Object handler) throws Exception {
        System.out.println("ProcessInterceptor，预处理回调方法正在执行");
        return true;
    }

    /**
     * 在执行完Handler方法之后执行
     */
    @Override
    public void postHandle(HttpServletRequest request,
                           HttpServletResponse response,
                           Object handler,
                           ModelAndView modelAndView) throws Exception {
        System.out.println("ProcessInterceptor，后处理回调方法正在执行");
    }

    /**
     * 在视图渲染完成之后执行
     */
    @Override
    public void afterCompletion(HttpServletRequest request,
                                HttpServletResponse response,
                                Object handler,
                                Exception ex)
            throws Exception {
        System.out.println("ProcessInterceptor，请求完成回调方法正在执行");
    }
}

注册自定义拦截器

xml

<!--配置拦截器-->
<mvc:interceptors>
    <mvc:interceptor>
        <!-- 白名单 -->
        <mvc:mapping path="/**"/>

        <!--黑名单-->
        <mvc:exclude-mapping path="/inter/a/**"/>

        <!-- 拦截器 -->
        <bean class="com.futureweaver.interceptor.ProcessInterceptor"></bean>
    </mvc:interceptor>
    <!--
    <mvc:intercepter>
        ...
    </mvc:intercepter>
    -->
</mvc:interceptors>

jackson注解

`JsonFormat`

java

@JsonFormat(pattern="yyyy-MM-dd HH:mm:ss",timezone = "GMT+8")

`JsonProperty`

java

@JsonProperty("new_name")

`JsonIgnore`

java

@JsonIgnore

`JsonInclude`

java

// 若"name==null" 忽略此属性
@JsonInclude(JsonInclude.Include.NON_NULL)

// 若hobby长度为0或==null 忽略此属性
@JsonInclude(value= JsonInclude.Include.NON_EMPTY)

`JsonSerialize`

java

@JsonSerialize(using = DoubleSerializer.class)

java

public class DoubleSerializer extends JsonSerializer<Double> {

    // value即 Double salary的值
    @Override
    public void serialize(Double value, JsonGenerator gen, SerializerProvider serializers) throws IOException {
        // 将Double salary的值 四舍五入
        String number = BigDecimal.valueOf(value).setScale(2, BigDecimal.ROUND_HALF_UP).toString();
        // 输出 四舍五入后的值
        gen.writeNumber(number);
    }
}

跨域访问

方案 1

java

@CrossOrigin

方案 2

xml

<mvc:cors>
   <mvc:mapping path="/**"
             allowed-origins="http://127.0.0.1:8020,http://127.0.0.1:8081"
             allowed-methods="GET,POST,PUT,DELETE,OPTIONS"
             allowed-headers="Content-Type,token"
             allow-credentials="true"
             max-age="123" />
</mvc:cors>

方案 3

java

import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;
import org.springframework.web.filter.CorsFilter;

@Configuration
public class CorsConfig{
    @Bean
    public FilterRegistrationBean<CorsFilter> corsFilter() {
        CorsConfiguration config = new CorsConfiguration();
        config.addAllowedOriginPattern("*");
        config.addAllowedHeader("*");
        config.addAllowedMethod("*");
        config.setAllowCredentials(true);
        config.setMaxAge(3600L);

        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", config);

        return new FilterRegistrationBean<>(new CorsFilter(source));
    }
}

Idea模板

进入Idea欢迎页面(如果已开启某个项目，点击菜单栏-File-Close Project)
左侧导航栏，选择Customize，选择All Settings...
左侧导航栏，选择Editor->File And Code Templates

pom.xml

右侧视图，选择Other选项卡
右侧窗口中的左侧导航栏，选择Maven->Maven Project.xml
下拉到底部，将以下文本，CV到</project>上侧

xml

    <dependencies>
        <!-- jakarta.servlet-api -->
        <!-- jakarta.servlet.jsp.jstl-api -->
        <!-- jakarta.servlet.jsp.jstl -->

        <!-- druid -->
        <!-- mysql-connector-j -->
        <!-- mybatis -->
        <!-- pagehelper -->

        <!-- spring-context -->
        <!-- spring-aspects -->
        <!-- spring-jdbc -->
        <!-- mybatis-spring -->
        <!-- log4j -->

        <!-- spring-web -->
        <!-- spring-webmvc -->
        <!-- jackson-databind -->
        <!-- hibernate-validator -->
        <!-- commons-io -->
        <!-- !commons-fileupload! -->

        <!-- spring-test -->
        <!-- junit -->
    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>*.xml</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>

            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>*</include>
                    <include>**/*</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

web.xml

右侧视图，选择Files选项卡
点击+
Name -> web-xml
Extention -> xml
File Name -> web.xml
将以下内容，粘贴到模板内部

xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
                             http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:application-context.xml</param-value>
        </init-param>
        <load-on-startup>2</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
      <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>

    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

application-context.xml

右侧视图，选择Files选项卡
点击+
Name -> application-context-xml
Extention -> xml
File Name -> application-context.xml
将以下内容，粘贴到模板内部

xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:c="http://www.springframework.org/schema/c"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:util="http://www.springframework.org/schema/util"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/mvc
        https://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/util
        https://www.springframework.org/schema/util/spring-util.xsd">

    <context:component-scan base-package="${base_package}"/>

    <util:properties id="druidConfiguration" location="classpath:druid.properties"/>
    <bean id="dataSource"
          class="com.alibaba.druid.pool.DruidDataSourceFactory"
          factory-method="createDataSource"
          c:properties-ref="druidConfiguration"/>

    <bean id="mybatis-config"
          class="org.springframework.core.io.ClassPathResource"
          c:path="mybatis-config.xml"/>

    <bean id="sqlSessionFactory"
          class="org.mybatis.spring.SqlSessionFactoryBean"
          p:configLocation-ref="mybatis-config"
          p:dataSource-ref="dataSource"/>

    <bean id="mapperScannerConfigurer"
          class="org.mybatis.spring.mapper.MapperScannerConfigurer"
          p:basePackage="${mapper_package}"/>

    <bean id="tx"
          class="org.springframework.jdbc.datasource.DataSourceTransactionManager"
          p:dataSource-ref="dataSource"/>

    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"/>

    <aop:aspectj-autoproxy/>
    <mvc:annotation-driven/>
    <mvc:default-servlet-handler/>
</beans>

mybatis-config.xml

注意

因为mybatis不再使用默认连接池，而是利用spring，将mybatis与druid整合。所以需要将mybatis-config.xml模板中与连接池相关的配置删除。

又因为mybatis的mapper扫描，已经委托给了spring，所以需要将mybatis-config.xml模板中与mapper扫描相关的配置删除

xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <setting name="lazyLoadingEnabled" value="true"/>
        <setting name="autoMappingBehavior" value="FULL"/>
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <setting name="cacheEnabled" value="false"/>
        <setting name="localCacheScope" value="STATEMENT"/>
    </settings>

    <typeAliases>
        <package name="${type_aliases_package}"/>
    </typeAliases>

    <!--
    <plugins>
        <plugin interceptor="com.github.pagehelper.PageInterceptor"/>
    </plugins>
    -->
</configuration>

课程目标总结

能够描述 SpringMVC 框架
能够实现 SpringMVC 的环境搭建
能够描述 SpringMVC 的执行流程
能够描述 SpringMVC 中的常用组件
掌握 SpringMVC 的常用注解
掌握 SpringMVC 的参数绑定
掌握 SpringMVC 的返回值绑定
掌握 SpringMVC 中的转发和重定向使用
掌握 SpringMVC 与 json 交互
掌握 SpringMVC 中的图片上传
了解 SpringMVC 中的拦截器
掌握 SSM 整合(SpringMVC + Spring + MyBatis)

SpringMVC ​

SpringMVC概述 ​

快速入门 ​

导入依赖 ​

配置Spring容器 ​

配置前置控制器 ​

编写Controller ​

配置视图解析器 ​

SpringMVC执行流程分析【重点】 ​

RequestMapping注解参数 ​

value ​

path ​

method ​

params ​

参数绑定 ​

基本类型与String类型 ​

POJO类型 ​

内置转换器 ​

自定义类型转换器 ​

实现接口 ​

配置转换器 ​

引用自定义转换器 ​

编码过滤器【掌握】 ​

常用注解【重点】 ​

RequestParam ​

PathVariable ​

RequestHeader ​

CookieValue ​

SessionAttribute ​

Model ​

Model参数 ​

ModelMap参数 ​

ModelAttribute注解 ​

SessionAttributes注解 ​

页面跳转 ​

转发 ​

重定向 ​

SpringMVC深入 ​

响应数据和结果视图 ​

返回值分类【了解】 ​

字符串 ​

void ​

ModelAndView ​

响应ResponseBody ​

字符串类型 ​

对象类型 ​

请求RequestBody ​

静态资源问题 ​

解决方案1【重点】 ​

xml配置方式 ​

注解配置方式 ​

解决方案2【了解】 ​

xml配置方式 ​

解决方案3【了解】 ​

组合注解 ​

文件上传 ​

导入依赖 ​

配置解析器 ​

编写Controller ​

validation-api【扩展】 ​

导入依赖 ​

常用注解 ​

validation-api使用 ​

异常处理(前后端不分离模式) ​

自定义异常解析器 ​

自定义异常视图 ​

异常处理 ​

增强器 ​

拦截器 ​

自定义拦截器 ​

注册自定义拦截器 ​

jackson注解 ​

JsonFormat ​

JsonProperty ​

JsonIgnore ​

JsonInclude ​

JsonSerialize ​

跨域访问 ​

Idea模板 ​

pom.xml ​

SpringMVC

SpringMVC概述

快速入门

导入依赖

配置Spring容器

配置前置控制器

编写Controller

配置视图解析器

SpringMVC执行流程分析【重点】

RequestMapping注解参数

value

path

method

params

参数绑定

基本类型与String类型

POJO类型

内置转换器

自定义类型转换器

实现接口

配置转换器

引用自定义转换器

编码过滤器【掌握】

常用注解【重点】

RequestParam

PathVariable

RequestHeader

CookieValue

SessionAttribute

Model

Model参数

ModelMap参数

ModelAttribute注解

SessionAttributes注解

页面跳转

转发

重定向

SpringMVC深入

响应数据和结果视图

返回值分类【了解】

字符串

void

ModelAndView

响应ResponseBody

字符串类型

对象类型

请求RequestBody

静态资源问题

解决方案1【重点】

xml配置方式

注解配置方式

解决方案2【了解】

xml配置方式

解决方案3【了解】

组合注解

文件上传

导入依赖

配置解析器

编写Controller

validation-api【扩展】

导入依赖

常用注解

validation-api使用

异常处理(前后端不分离模式)

自定义异常解析器

自定义异常视图

异常处理

增强器

拦截器

自定义拦截器

注册自定义拦截器

jackson注解

`JsonFormat`

`JsonProperty`

`JsonIgnore`

`JsonInclude`

`JsonSerialize`

跨域访问

Idea模板

pom.xml
